Food Coffee Industrial Flour Mixing Machine Cocoa Milk Ice Cream 50-20000L

Jiangyin Brightsail Machinery Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Food Coffee Industrial Flour Mixing Machine Cocoa Milk Ice Cream 50-20000L

  • 1
  • 2

Brand Name : Brightsail

Model Number : BSR

Certification : CE ISO

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10 sets per month

Delivery Time : 30-35 days

Packaging Details : Wooden case or container

Material : SUS304,SUS 316,carbon steel

Volume : 50-20000L

Warranty : One year

Package : Wooden case or container

Contact Now

Food powder blender machine coffee cocoa milk ice cream flour mixing machine

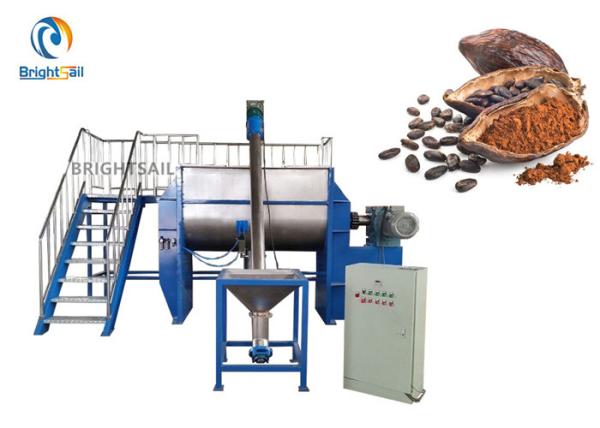

Our BSR powder blender is a horizontal powder mixing equipment, designed to mix all kinds of dry powder. It consists of one U-shaped horizontal mixing tank and two groups of mixing ribbon: outer ribbon displace the powder from the end to the center and inner ribbon move the powder from the center to the ends. This counter-current action results in homogeneous mixing!

Working method:

It is in unique structure design of horizontal U-shaped barrel, two-layer spiral band, which is efficient and fast for the mixture of materials. Motivated by spiral band of the mixer shaft, the external spiral band moves inward from both sides , making the materials blending back and forth. Moreover, axial movements of partial mixture are pushed by the spiral band, in this way convective circulation can be achieved. The materials can be mixed quickly and evenly in a short time.

Main features:

1. Ribbon mixer is of wide range applications in different fields. It applies to various materials and particle sizes with high homogeneity.
2. Ribbon mixer is highly efficient within short time. For different raw materials and particle sizes,the homogeneity is very high.
3. For viscous or cohesive materials, ribbon mixer performs much better than other horizontal mixers.
4. The minimal gap between ribbon and vessel ensures mixing efficiency and minimal dead spots.
5. The performance of packing seal and air purge seal for the main shaft seal is airtight.It is abrasion-resistant and guarantees long life in service.
6. Ribbon mixer is easy to clean through clean-out door or top lid.
7. The vessel fabrication is stable, robust and easy to install and maintain. The whole mixing process is reliable which results in low maintenance and low wear.

Our company:

Brightsail Machinery, belongs to Jiangyin Heng Sheng Steel Structure Co.Ltd, which was established in two 2002.
It's professional and engaged in research, development, production,sale and service of grinder machine,mixer,sifting machine,overall powder solution,welding service,welding machine, and metal processing,and chemical powder.
Since its foundation, Brightsail has always adhered with the principle of quality firstly and technology is life. Recently, the two companies own more than 50 employees, about 400m2 of office space, cover about 340m2 of manufacturing space. With customer center idea as base,it takes every detail seriously in the process of production to assure high performance and quality of each part and equipment as well as the stable operation in more than 50 nations around the world.


Technical data:

Model Max work volume(L) Speed(rpm) Motor(kw) Overall size(L*W*H)(mm) Weight(kg)
BSR-100 60L 62 3 1080*758*615 330
BSR-300 180L 49 5.5 1550*812*1015 780
BSR-500 300L 46 7.5 1975*1059*1120 955
BSR-1000 600L 35 11 2340*1380*1455 1400
BSR-2000 1200L 33 15 2480*1651*1805 2500
BSR-3000 1800L 33 18.5 2945*1896*1980 3300
BSR-4000 2400L 29 22 3038*1946*2205 3600
BSR-5000 3000L 29 30 3932*2010*2035 4320
BSR-6000 3600L 26 37 3938*1882*2246 5300
BSR-8000 4800L 26 45 3986*2160*2516 6800
BSR-10000 6000L 19 55 4500*2270*2667 8900
BSR-15000 9000L 17 75 5363*2470*3020 9950
BSR-20000 12000L 17 90 5670*2650*3497 11140
