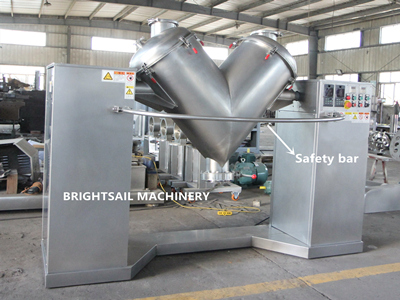

SS304 powder blender mixer machine V type coffee tea flour mixing machine
BSV powder mixing machine is an international common powder or dry grain material mixing machine, it has the advantages of simple structure, easy operation, convenient to maintain and clean, fast speed, the mixing effect. Widely used in pharmaceutical, chemical, food, electronics, metallurgy, plastics, refractories and other industries, is a kind of ideal high-efficient dry powder mixing equipment.
Working method:
This machine can mix blends of relatively fine powder as well as agglomerates of materials with relatively high moisture content. The rotary motion is created by a gear motor connected to the container with chains and pinions. This type of transmission was preferred over a direct connection because it is more flexible. It is also less noisy thanks to our system of motion-mass dampers.
Main features:
1. Due to the internal structure, the cylinder adopts a V-shaped and cylinder-type fixed stirring device, which rotates during the stirring process, and the material rotates 360 degrees in the cylinder. The material is forced to flip through the fixed relative movement and the mixing cylinder. Effect, which improves some traffic. Bad materials have better mixing effect.
2. The contact part between the barrel and the material is designed to smooth transition, no dead ends, thorough cleaning, and to avoid cross-contamination of drugs, especially for pharmaceutical companies.
3. Simple structure, convenient installation and maintenance.
Our company:
Over the past 15 years, Brightsail Machinery has been devoted to the design and manufacture of overall solutions for powder processing in the chemical, pharmaceutical, food, mineral, cosmetics, plastics and other industries, such as pulverizers, mixers, screeners, etc. After years of experience and technological progress, we have become one of the most popular manufacturers in the industry.
Since we have sold many machines to more than 50 countries, we have enough experience and technology to help you find the most suitable machine. We hope to grow and develop with all new and existing customers.
Technical data:
| Model | BSV-100 | BSV-200 | BSV-300 | BSV-500 | BSV-1000 | BSV-1500 | BSV-2000 | BSV-2500 | BSV-300 | BSV-4000 |
| Total volume(m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Cylinder speed(rpm) | 15 | 15 | 12 | 12 | 12 | 10 | 10 | 8 | 8 | 7 |
| Main motor power(kw) | 1.1 | 1.1 | 1.1 | 2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Agitator power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 |
| Weight(kg) | 230 | 290 | 400 | 550 | 850 | 1020 | 2040 | 2200 | 2500 | 2800 |
