Spice dryer oven machine red pepper turmeric onion ginger drying equipment

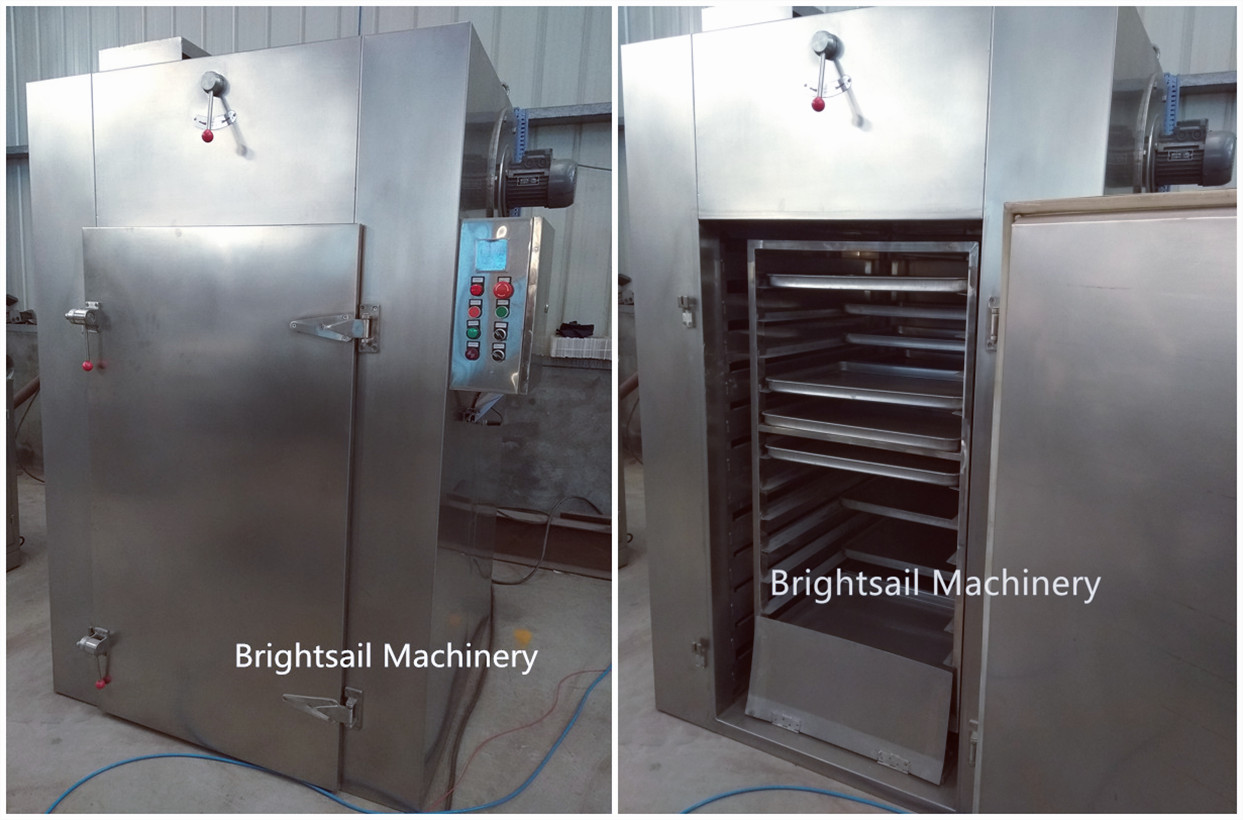

BSO drying machine is a multifunctional drying device. The forced hot air heated by electric heating tubes or steam heat exchangers is circulated in the box to enhance heat transfer and achieve the effect of drying materials.
This product is equipped with low noise, high temperature resistant axial flow fan and automatic temperature control system. The entire circulation system is completely sealed, improving thermal efficiency.It is widely used in food, chemical, pharmaceutical and other industries. Such as spices, seafood, herbs, fruits and so on.
Working method:
Its work principle is that used steam or electric heating air, then made a cycling dry with heated air. There are even dry and lower discre-paney of temperature difference in the each side of even. In the dry course of suppling continuously flesh air and discharging hot air so that the even might be in good condition and kept proper temperature and humidity.
Main features:
1. Adopt multilayered structure, large area of drying , it can continuous produce in large quantities.
2. Heat exchange furnace adopt new fireproofing and high quality steel, easy construction and operation, easy maintenance.
3. The air blow to the material is pure,will not pollute the materials.
4. Bidiretional oven door, in order to facilitate inspection, dismantling parts, easy to open and clean.
5. The drying machine doesn’t require a lot of civil works,small footprint,low installation costs.
Our company:
Brightsail Machinery Co., Ltd. has been established for nearly 15 years. Our company designs and manufactures integrated powder processing solutions for chemical, pharmaceutical, food, mineral, cosmetic and plastic industries, such as pulverizer machines, mixing machines, drying machines, packing and filling machines, etc. After years of development, our company has become one of the most famous powder equipment manufacturers in the industry.
If you have any interest in our products, please don't hesitate to contact us! We will try our best to find a most suitable machine for you.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
FAQ:
1) What is your raw material?
2) What is the raw material's water %
3) What the final material's water% you want to get by dryer?
4) About heat source, you will use electricity or steam?
5) What capacity you want to dry per day?
6) How many work hours you plan to use per day? (like 8 hours, 10 hours,12 hours...etc)
