500kg / H Icing Sugar 75kw Powder Grinder Mill

  • 1
  • 2

Brand Name : Brightsail

Model Number : BSP

Certification : CE ISO

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : 30-35 days

Packaging Details : Container

Product name : Grain powder mill grinder milling making machine air classifier mill

Material : SS 304/316

Capacity : 20-1800 kg/h

Input size : <15mm

Fineness : 60-2500 mesh

Crusher motor : 11-75kw

Voltage : customized

Package : Wooden case or container

Contact Now

500kg/h icing sugar powder grinder mill cassava yam flour pulverizer machine

BSP ultra-fine pulverizer is a new type fine pulverizer without sieve, used to crush material into very fine powder (60-2500mesh), which is used widely in pharmaceutical,chemical and food industries etc.

Working method:

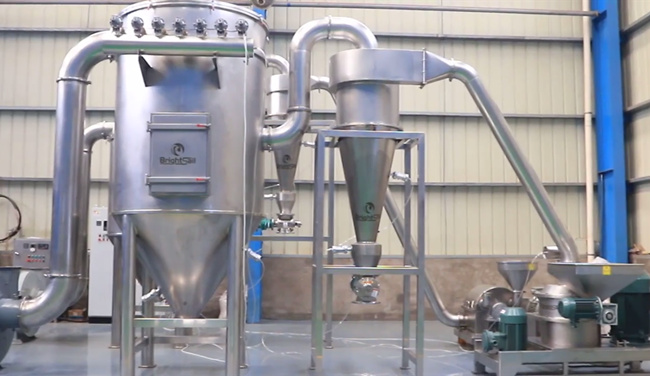

Raw material is delivered to the grinding chamber via hopper by spiral feeder, it is cut and sheared by the high speed cutters, and then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method. The dust is collected and recycled via cloth bag. There is no dust flying during production.

Main features:

1.You can adjust the output size by adjusting the speed of the grading wheel.
2.There is no sieve inside the chamber. Easier to use than the pulverizers with a sieve.
3.Continuous working is suitable for industrial production.
4.There is no dust flying during production.
5.We use stainless steel to produce micro mill, which assures final products healthy and clean.
6.We can change the position of the connecting pipes according to the space of customer's workshop.
7.Can be equiped with water cooling system to cool down the temperature inside the crushing chamber to keep working continuously.

Technical data:

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 60-2500 60-2500 60-2500 60-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) -6500 -5350 -4600 -3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100
