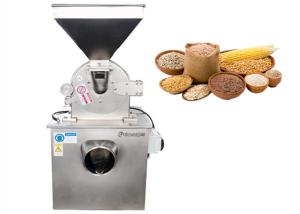

Crystal White Brown Icing 800 Kg/H Sugar Grinding Mill

Name: Crystal White Brown Icing 800 KgH Sugar Grinding Mill
Brand: Brightsail
Price: 1 USD

China Crystal White Brown Icing 800 Kg/H Sugar Grinding Mill wholesale

Brand Name : Brightsail

Model Number : BSU

Certification : CE ISO

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 30 sets per month

Delivery Time : 25-30 days

Packaging Details : wooden case or container

Product name : Crystal sugar powder milling machine white brown icing sugar grinding mill

Material : SS304/316

Feed size : <10mm

Output size : 10-120 mesh

Capacity : 20-800 kg/h

Voltage : 220-480 v

Motor : 4-22kw

Package : wooden case

Contact Now

Crystal sugar powder milling machine white brown icing sugar grinding mill

Working Method

The machine uses the relative movement between the active and fixed fluted disc to impact, grind and crush the target materials.
 The crushed material is discharged directly from the grinding chamber of the main frame.
 Those pharmaceutical, chemical and food stuff products from the machine are in accordance with national requirement, achieving GMP standard.

Powder grinding machine Features

Wide application and large handling capacity.
Simple and compact construction; smooth and steady running.
The material grinding process is fast and reliable, grinding fitness is adjustable.
The surface of the multifunctional grinding machine is smooth, easy to clean.

Technical data:

Model	BSU-20	BSU-30	BSU-40	BSU-60
Capacity(kg/h)	20-150	30-300	50-400	100-800
Size of input granules(mm)	<6	<10	<10	<10
Size of output granules(mesh)	20-120	20-120	20-120	20-120
Power(kw)	4	7.5	11	22
Speed of principal axis(rpm)	4650	3800	3400	2800
Overall size(LWH)(mm)	6508201500	7009001650	75010001750	95012502150
Weight(kg)	230	330	430	900

Applications:

Crystal White Brown Icing 800 Kg/H Sugar Grinding Mill
