Highly Efficient Teff Flour Making Machine
BSP teff grinding machinery is made up of crusher, cyclone, dust collector, blower and electric control box with the capabilities of winnowing, non-sieve or mesh, equality of granule size, and continuous processing etc. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.
This machine is also one of the best-selling products of our company, which is a very good choice for customers with large production demand. Of course, our overseas customers are also very satisfied with this product.
Working method:
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement.
Main components:
(1)The left motor is crush motor;the right motor is classifier motor.It adopts a small screw feeder, make sure feed speed is even and controllable.
(2)Material enters the mill chamber via screw conveyor where it is sheared and milled by fast- rotating blades.The powder passes the guide ring and enters the classifier chamber.
(3)Rotary valve make powder discharge speed even,Rotary valve is also made of stainless steel and to clean it and dismantle is convenient.
(4)Dust is collected inside the dust collecting box.
Main features:
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 80 to 500 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
Detailed Images:

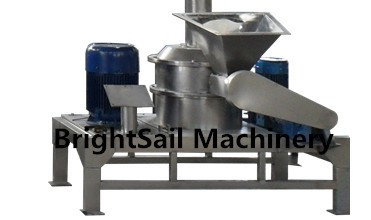

Crusher part
(1) The left motor is crush motor;
(2) the right motor is classfifier motor.
(3) It adopts a small screw feeder, make sure feed speed is even and controllable.
Cutter inside mill chamber
Work method:Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades.The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation,both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a greater mass,they are thrown back into the mill chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Why Choose Us:
Within years, we have exported machine to over 30 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you do not need to worry about the export procedures because we know all the procedures.
