Customized 10-120 mesh Chickpea Electrical Grinder
BSDF can make finer powder than traditional hammer mill because of its totally different structure,it combines coarse crusher,middle fine milling and fine milling together, which means material can be milled three times in a very short time, almost at the same time.It's also one of the most popular products in our company,and our foreign clients are all very satisfied with our products.
Detailed Images:

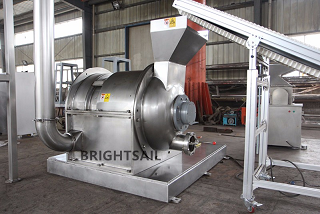

 | Mill part:
this is the mill part,
It combines corse crusher area, middle fine milling area, and super fine milling area together. |

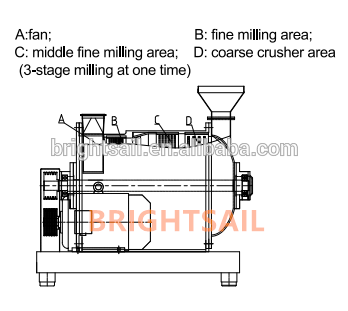

 | Work method
1) From right to left,
they are coarse crush area,middle fine mill area and fine milling area and blast area.
Material fed in will be milled by the three areas to become fine powder.
2) change powder size by changing speed. |

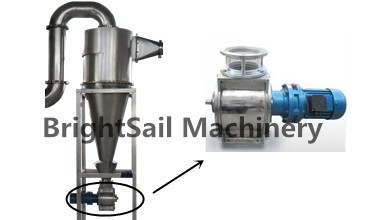

 | Cyclone part
(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel
and to clean it and dismantle is convinient. |

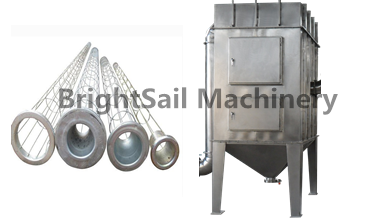

 | Pulse Dust Collecting box
(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently. |
Main features:
1) BSDF chickpea electric crusher has three knife groups in the mill chamber: Coarse Crusher, Middle Fine Mill and Fine Mill, Normal hammer mill only have one.
2) BSDF doesn't need a sieve or screen mesh in mill chamber, change powder size by changing speed by inverter. Normal hammer mill has.
3) Temperature of BSDF's mill chamber will not rise or only rise a little, quality of powder not be affected by heat. Temperature of normal hammer mill's chamber is much higher.
4) With the same power consumption, BSDF's capacity is much bigger than normal hammer mill.
Technical data:
| Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
| Capacity(kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Grind motor(kw) | 22 | 37 | 45 | 55 | 75 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Blower(kw) | 7.5 | 15 | 15 | 18.5 | 18.5 |
| Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
Packing And Shipping:
1.We provide shipping methods:Courier service,Air transport,Sea Transport
2.Can accept order:Full container cargo load,Less container load
3.Delivery term :EXW,FOB,CIF,CNF etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
