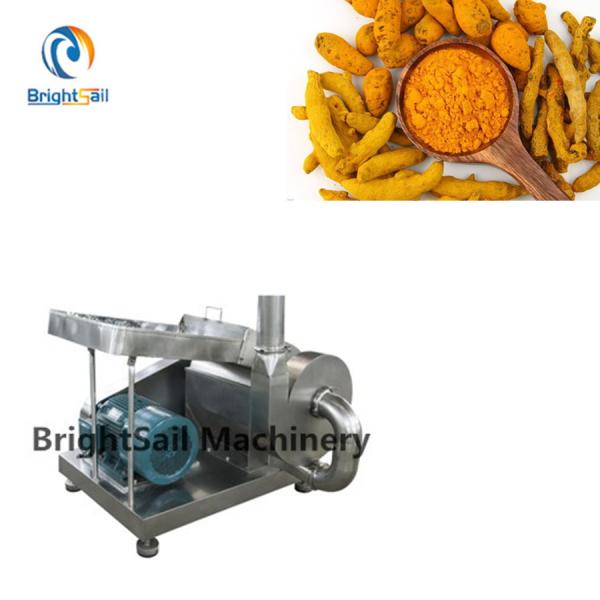

80-1200 kg/h High-Production Turmeric Grinder Machine For Industry
BS turmeric powder grinding machine is very suitable to grind spice,like chili,ginger,garlic,Black pepper,Onions,turmeric.It can satisfy many clients' requirement for high-productivity becouse of it's high-efficient feature.Our BS spice powder grinding machine is a good selling product,you can feel free to choose us .
Working method:
BS turmeric crushing grinder’s work method is : material is crushed by high speed relative motion of movable hammer knives and fixed disc. There is screen mesh in mill chamber,if the particle is smaller than the hole size of screen mesh, it will pass the screen mesh and get out of the mill chamber by centrifuge force. If not, the particle will continue to be crushed in the mill chamber.
Detailed Images of BS pulverizer machine:
 | Cyclone part
(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel
and to clean it and dismantle is convinient. |

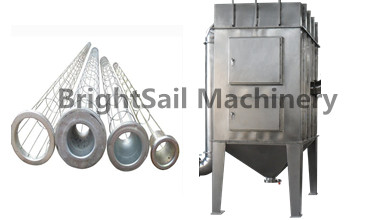

 | Pulse Dust Collecting box
(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently. |
 | TO MAKE SURE BETTER QUALITY
1) We use motor from ABB/Siemens/WEG
2) We adopts electrical control parts from Schneider/Delixi
3) We use bearings from SKF |

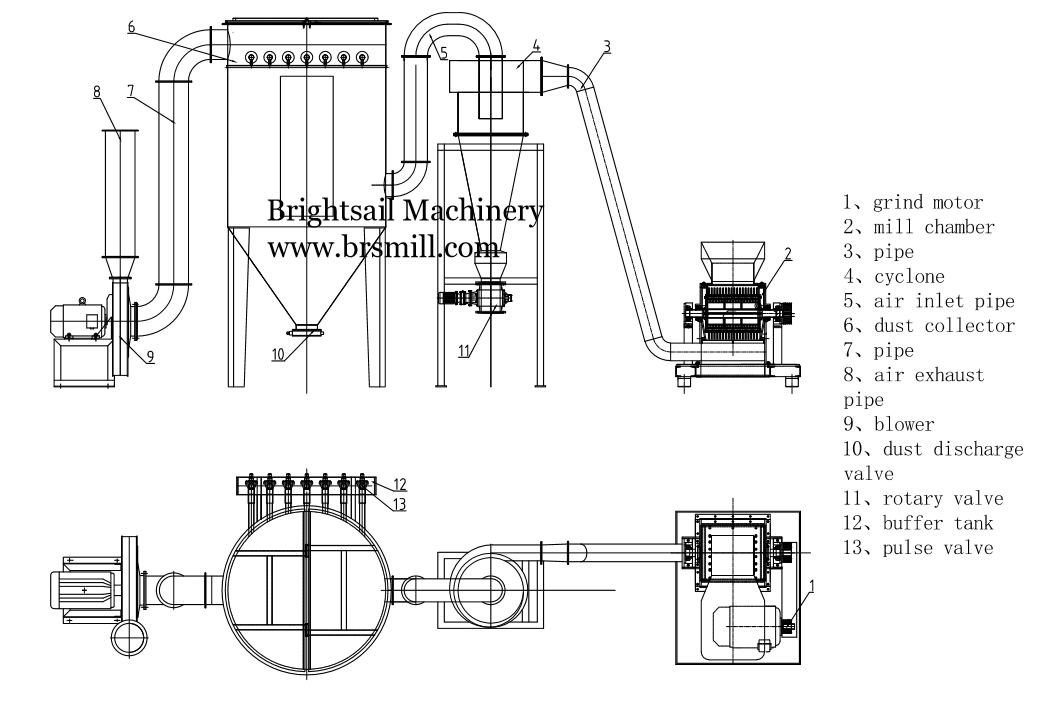

Drawing:
Main features:
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4) During production,temperature remains normal, will not get hot. So material's color and nature won't change.
5) It can grind spice and oil material with oil content 10%~20%.
Technical data:
| Model | BS-400 | BS-630 | BS-880 | BS-1000 |
| Capacity(kg/h) | 80-1200 | 400-1800 | 800-2500 | 1000-3000 |
| Fineness(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main crush motor(kw) | 22 | 37 | 45 | 55 |
| Overall size(L*W*H)(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 | 8800*2000*3300 |
Why Choose Us:
Within years, we have exported machine to over 30 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you do not need to worry about the export procedures because we know all the procedures.
Our BS spice powder grinding machine is a good selling product,you can feel free to choose us .
FAQ:
1) Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
