Capacity 10-1000kg/Hr Cinnamon Processing Machine
turmeric grinding machine cinnamon processing machineturmeric grinding machine cinnamon processing machine
1.BSP ultra-fine pulverizer set (air classifier mill) (can make 40 to 320 mesh herb powder)
Suitable for grinding herbs,roots,leaf, and low oil-containing spices and other materials, such as rice, herbs, seaweed...Fineness up to 2500 mesh
BSP powder machine by the crusher, cyclone separator, dust remover, Fan, electrical control box and other components.
With the ability of selection, screening, uniform particle size, continuous processing.
After the superfine grinder is connected to the feeding machine, it can realize the process of fully automatic integration from feeding, crushing and discharging. On the one hand, it can reduce labor costs, and on the other hand, it is more hygienic, safe and efficient, especially suitable for large-scale condiments Production factories and flour mills, etc.
turmeric grinding machine cinnamon processing machineturmeric grinding machine cinnamon processing machine

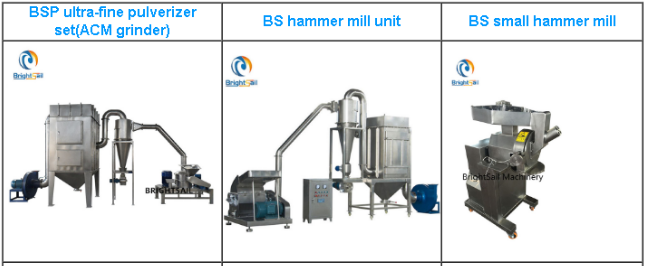

Three types of machines:
40-320 mesh for spice 12-80 mesh for spice design for small capacity
12-80 mesh for spice
Main picture:
turmeric grinding machine cinnamon processing machineturmeric grinding machine cinnamon processing machine
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Application:
spices,chilli,herbal,turmeric,ginger,coco beans,chickpea,rosehip...etc.

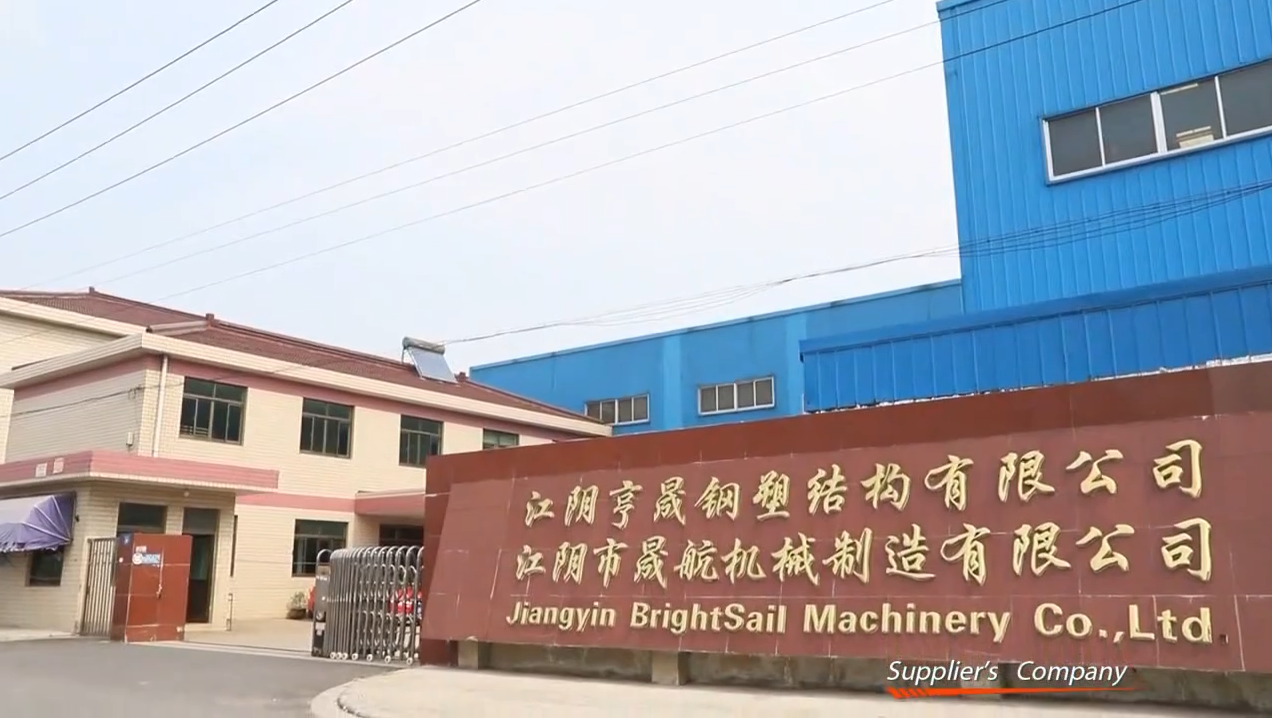

Our Company:
Brightsail Industrial Group Co. , Ltd. is the Trading Department of Brightsail Machinery Co. , Ltd. and Jiangyin Hengsheng Steel Structure Co. , Ltd. . It was established in 2002. We provide professional powder processing integrated solutions, grinding machines, mixers, sieves, welding services, welding machines, chemical powder... after 15 years of development and accumulation, our company has become one of the most influential equipment manufacturers. Willing to grow and develop together with new and old customers.
turmeric grinding machine cinnamon processing machineturmeric grinding machine cinnamon processing machine
Please connact us if you have any intersts in our products:
our email: info@brightsail-asia.com
website:www.brsmill.com
Whatsapp: +8615961653782
turmeric grinding machine cinnamon processing machineturmeric grinding machine cinnamon processing machine
