Can pack a variety of weight specifications packing 25 to 60 bags per minute curry powder packing machine
BSPM spice packing machine powder can do quantitative and filling work. Due to the special design, it is suitable for filling most powdery and small particle materials, such as sugar, spice powder, milk powder, wheat flour, starch powder, talcum powder, salt, solid beverages, sugar, glucose, coffee powder, feed, medicine, Agricultural pesticides, granular additives, dyes, etc.
Main Features Of curry powder packing machine:
1. PLC control, stable and reliable dual-axis high-precision output, color touch screen, bag making, metering, filling, printing, and cutting can be completed at one time.
2. Independent circuit box, pneumatic control and power control. Low noise, more stable circuit.
3. Servo motor double belt traction: small traction resistance, good forming effect, more beautiful appearance; this belt is not easy to tie.
4. Double servo control, high positioning accuracy and more accurate size.
5. External film mechanism: the installation of packaging film is simpler and more convenient.
6. To adjust the bag deviation, just touch the screen to control it. The operation is very simple.
7. Close the mechanism to prevent powder from entering the machine.
8. The whole machine adopts servo motor control, screw measurement, accuracy 1%.
9. No tools are needed to adjust the weight of the product.
Technical Data Of curry powder packing machine:
| Models | BSPM-320 | BSPM-420 | BSPM-520 | BSPM-620 | BSPM-720 | BSPM-820 |
| Bag size(mm) | W:50-150
L:50-200 | W:80-200
L:80-250 | W:100-250
L:100-300 | W:120-300
L:120-350 | W:150-350
L:150-400 | W:200-400
L:200-450 |
| Bag Shape | | |
| Power(kw) | | |
| Packaging weight range (powder) (g) | | ≤500 | ≤1500 | ≤3000 | ≤4000 | ≤6000 |
| Packing speed (bag /min) | 25-60 (according to material characteristics and packing weight) |
| Packaging Accuracy | ±1% (according to material characteristics and packing weight) |

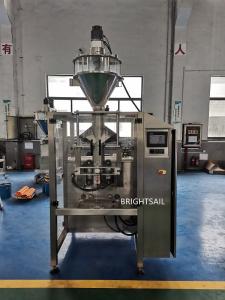

Detailed Images Of curry powder packing machine:
Applicatioon Of curry powder packing machine:

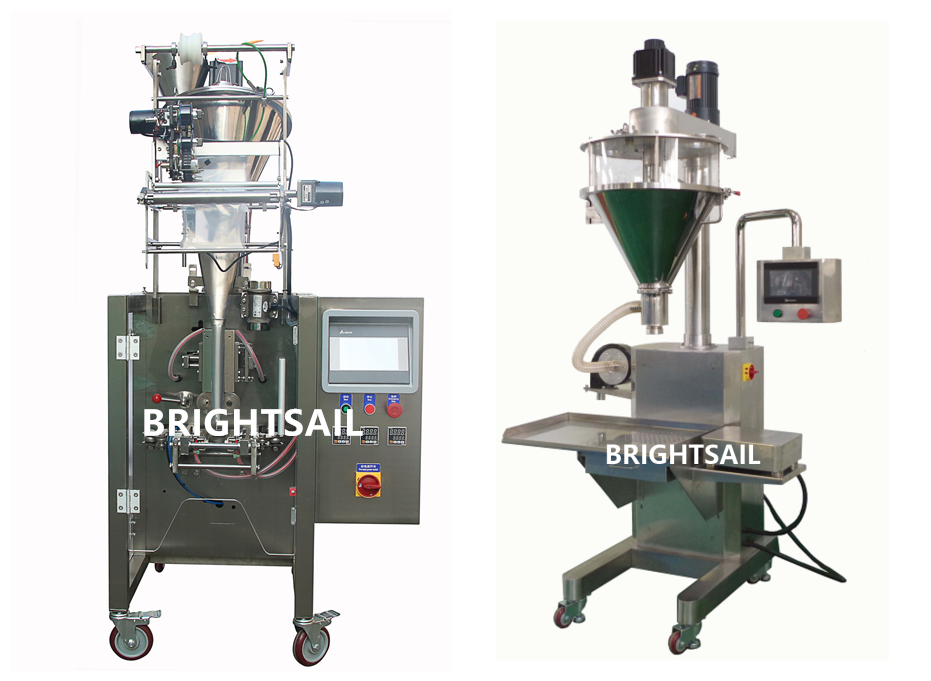

We have two more types of packing mahcines for you to chhoose if you have different requirements of packing speed,packing weight specifications,budget...
Welcome to contact us for consultation!
How Can I Buy This Machine?
First, discuss the details and prices of all the machines with our sales staff.
Second, confirm the price and terms of payment trade guarantee/wire transfer/escrow/western union remittance, etc. .
Third, send us the purchase order, confirm our Proforma Invoice and arrange the deposit. As soon as we receive the deposit, we will arrange the production.
Finally, once the machine is ready, please arrange the final payment for us. After receiving the final payment, we will arrange the booking and send the machine to you.
