5 To 50 Kg Weigh Range 2 To 4 Bags Per Minute Auger Powder Filling Machine
Introduction Of Auger Powder Filling Machine:
BSPM-A100 milk powder packaging machine can be used for bag making, weighing, filling, nitrogen filling, date coding, bag cutting, etc. Due to the special professional design, it is suitable for liquid or low-fluidity materials, such as condiments, cosmetics, coffee powder, solid beverages, veterinary drugs, glucose, pharmaceuticals, powdered drugs, powdered additives, talcum powder, agricultural pesticides, dyes, etc.
Main Features Of Auger Powder Filling Machine:
1. Using bag clip weighing measurement, PLC control technology
2. Independent suspension sensor, stable signal transmission, ensure weighing accuracy
3. Host, conveyor, sewing machine, networking controller, to ensure easy operation, reduce Labor intensity
4. Using infrared sensor, door-controlled feeding, more energy-saving
5. The weighing control system conforms to IP54(dust and water) design
Technical Data Of Auger Powder Filling Machine:
| Model | BSPM-A100 |
| Feed type | double screw |
| Measure method | by auger weighing |
| Weigh range | 5~50 KG |
| Packing accuracy | ≤1‰ |
| Pack speed | 2~4 bags/minute |
| Hopper size | 150L |
| Motor | 2 kw |
| Machine size | 1000*1000*2300 |
| Remark | when pack 4~10 kg bags, accuracy is ±10g when pack 10~25 kg bags, accuracy is ≤1‰ |

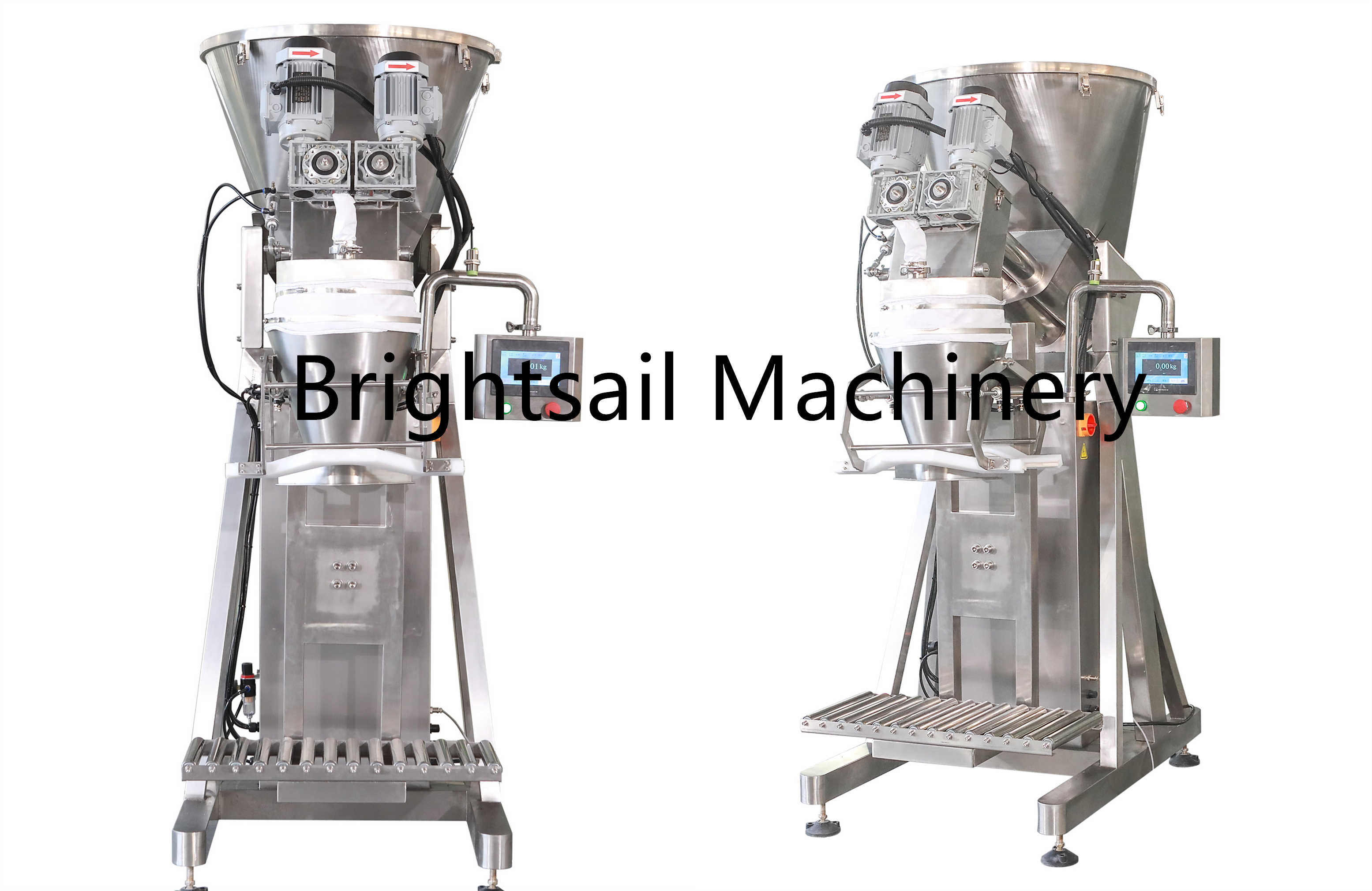

Appearance Of Auger Powder Filling Machine:

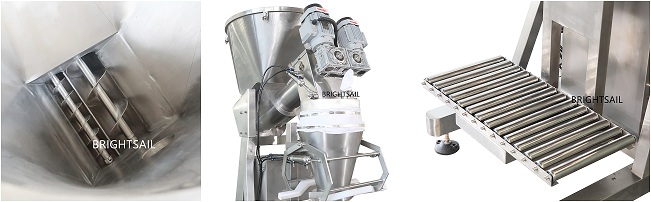

Detaied Images Of Auger Powder Filling Machine:
Apply to bag type:
