50 To 3000g Packing Weight 15 To 80 Bags Per Min Detergent Powder Filling Packing Machine
Description Of detergent powder filling packing machine:
1.Chinese and English screen display, simple operation.
2. PLC computer system, the function is more stable, no need to stop the machine to adjust any parameters.
3. Bag making, sealing, packaging, and date printing can be done at one time.
4. Quiet working environment and low noise.
Features of detergent powder filling packing machine:
1.This equipment is configured in accordance with the conventional bagging process, and the entire production process is highly automated and meets GMP sanitary standards;
2. Suitable for loose, non-sticky, fine granular materials;
3. The supporting machines of this equipment are all stainless steel except for the materials indicated, and all the machine structures are selected and designed in accordance with food hygiene standards;
4. The material of the container in contact with the material is food-grade SUS304;
5. The structures that are frequently dismantled and washed are all connected by easy-to-disassemble parts to ensure convenient handling and sanitation when shifting or changing products;
6. This equipment needs 1-2 employees during normal production.
Technical data of detergent powder filling packing machine:
| Hopper Weighing Scale |
| Weighing hopper | 4 | 2 |
| Feed method | double vibrating |
| Measuring method | electronic weighing feedback |
| Packing weight | 50-1000g | 50~3000g |
| Packing accuracy | ≤1-2g |
| Pack speed | ~24-32 bags/min | ~12-16 bags/min |
| Power | 1P/220V/50HZ |
| Motor | 1.0KW |
| One hopper volume | 3.6L | 10L |
| remark | We have more models if you need. |
| Working platform |
| Size | 2000*2000*1800mm |
| Material | SS304 |
| Remark | This size is only for reference,can be customized |
| BSPM vertical packing machine |
| Model | BSPM-520 | BSPM-720 |
| Film width | 520 | 720 |
| Bag length | 100~300 mm | 150~400 mm |
| Bag width | 100~250 mm | 150~300 mm |
| Pack speed | 20~80 bags/min | 15~18 bags/min |
| Motor | 3.5KW | 3.5KW |
| Remark | We have more models to satisfy your needs |
| Belt conveyor |
| Belt width | 300mm |
| Discharging Height | 900mm |

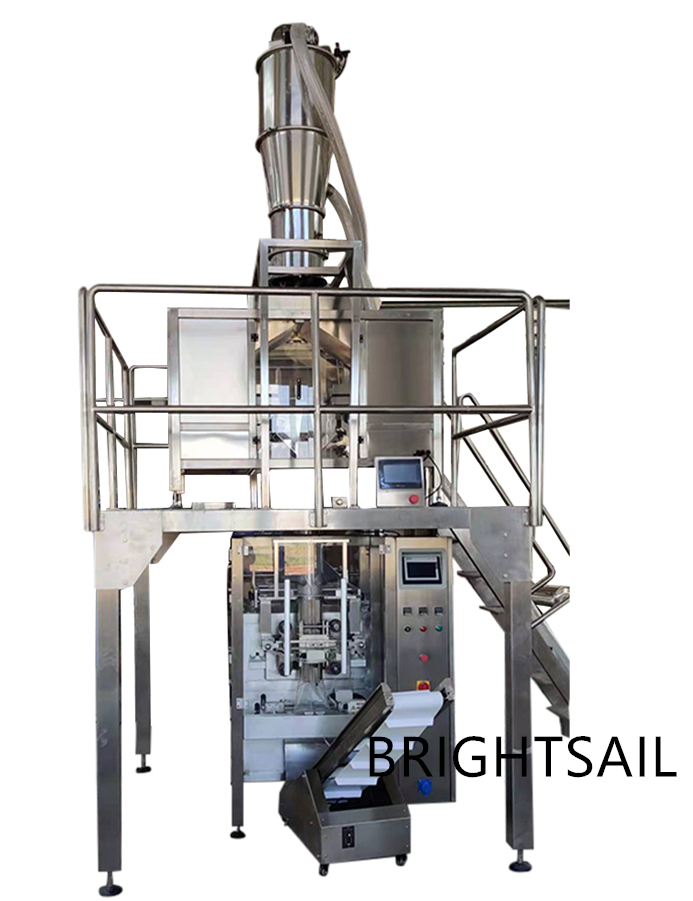

Appearance of detergent powder filling packing machine:
(click on the titie below to know more types of packing machines)
BSPM-B100 fine powder packing machine
BSPM vertical powder packing machine
Triangle teabag filling mahcine
