Packing Weight 10g 5kg chili powder filling packing machine
BSPM powder filling machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
Packing Weight 10g 5kg chili powder filling packing machinePacking Weight 10g 5kg chili powder filling packing machine
Main features:
1. Chinese or English display(language can be set according to customer requirements);
2. Easy operation, instructions and working conditions clearly shown on touch screen;
3. PLC provides stable working program;
4. Intelligent temperature control, temperature difference within 2℃;
5. Transverse tooth seal, solid packaging;
6. Servo motor film pulling, pneumatic sealing device.
Packing Weight 10g 5kg chili powder filling packing machinePacking Weight 10g 5kg chili powder filling packing machine
Technical data:
| Measure method | Auger dosing | Wrighing feedback tracking |
| Bag-making size | (W)80-200 mm (L)100-300 mm | (W)100-250 mm (L) 100-350 mm |
| Filling weight | 10-5000 g(by changing mould) |
| Packaging precision | ≤1% |
| Packaging speed | 25-60 bag/min |
| Power supply | Three phase 380/220 V 50-60HZ |
| Power | 6 kw |
| Pressure | 6-8 kg/cm2 |
| Use tolerance | 0.2 m3/min |
| Weight | 700 kg | 950 kg |
| Dimension | 1300*1500*2600 |
Packing Weight 10g 5kg chili powder filling packing machinePacking Weight 10g 5kg chili powder filling packing machine

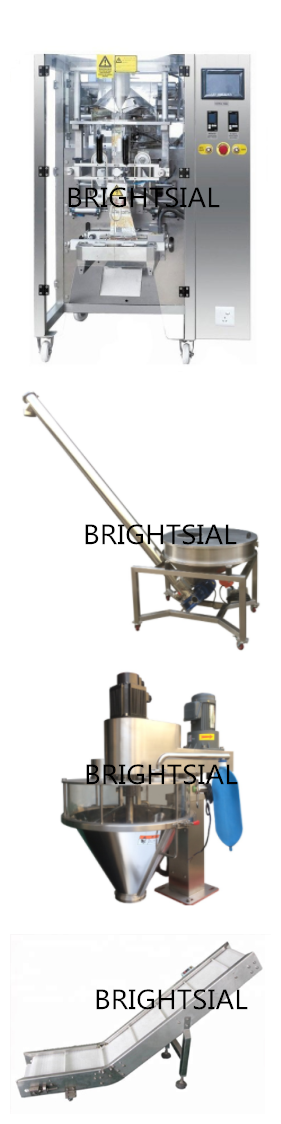

Detail images:
 | 1.Vertical packing machine
It is for forming pillow bag,gusset bag,four edge bags and fill powder from auger filler.
Printing date,sealing and cutting.
We have 320VFFS,420VFFS,520VFFS,620VFFS,720VFFS,1050VFFS for option. 2.Screw conveyor. It is for conveying powder to auger filler. 3.Augre filler
304SS frame ,We have 30L,50L and 100L capacity for different weight of powder weighing. 4.Take -off Conveyor
304SS frame ,belt and chain plate is option ,height of output can be modified . |
Application:
Relative devices:
please click the picture ,you can know more about the machines.
