Super Fine Rice Hull GMP Ss316 Powder Grinder Machine

  • 1
  • 2
  • 3

Brand Name : Brightsail

Model Number : BSP

Certification : CE ISO

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : 30-35 days

Packaging Details : Container

Product name : rice hull powder machinery

Material : SS 304/316

Capacity : 20-1800 kg/h

Speed of principle axia : -6500~-3100rpm

Blower : 7.5-37kw

Crusher motor : 11-75 kw

Other name : rice husk crush machine

Warranty : 1year

Contact Now

60 To 2500mesh Fineness For Super Fine Powder Making Rice Hull Powder Machinery

Introduction:rice hull powder machinery

BSP oats processing machine is suitable for crushing chemical products, food raw materials, seaweed raw materials, medicine, cosmetics, dyes, resins, fabrics and other materials, reaching the international advanced level. It has good crushing effect on rice, sugar, salt, beans, medicinal materials, roots, coconut shells, cassava, plantain, yam and so on.

Technical data:rice hull powder machinery

Model BSP-350 BSP-450 BSP-500 BSP-750
Input size(mm) <15 <15 <15 <15
Fineness(mesh) 60-2500 60-2500 60-2500 60-2500
Capacity(kg/h) 20-200 40-500 60-800 120-1800
Crush motor(kw) 11 18.5 30 55
Grade motot(kw) 1.5 4 5.5 11
Blower(kw) 7.5 11 18.5 37
Feed motor(kw) 0.55 0.55 0.75 1.5
Discharge motor(kw) 0.75 0.75 1.1 1.5
Speed of principle axia(rpm) -6500 -5350 -4600 -3100
Grading impeller speed(rpm) 4000 4000 3500 3000
Weight(kg) 1600 1800 2300 3100

Working method:rice hull powder machinery

The material delivers by the feeding engine to the crushing cavity, and is loaded with by the high speed revolving unit rubs the tooth the stator impact, cutting, the attrition.Rubs in the impact divides the step pulley and under the air blower centrifugal force function, the powder material enters the graduation area, the powder material is qualified.The unnecessary dust continues through the cyclone separator and the cloth sack dust remover to crush.

Main features:rice hull powder machinery

1. Alloy Steel Hammer and Rotor

2. GMP and food grade design

3. Adverse working conditions can prevent dust, suitable for crushing heat-sensitive materials.

4. The output dimension can be adjusted by air classifier and air flow.

5.Automatic control of feed rate.

6.The particle size distribution can be precisely controlled

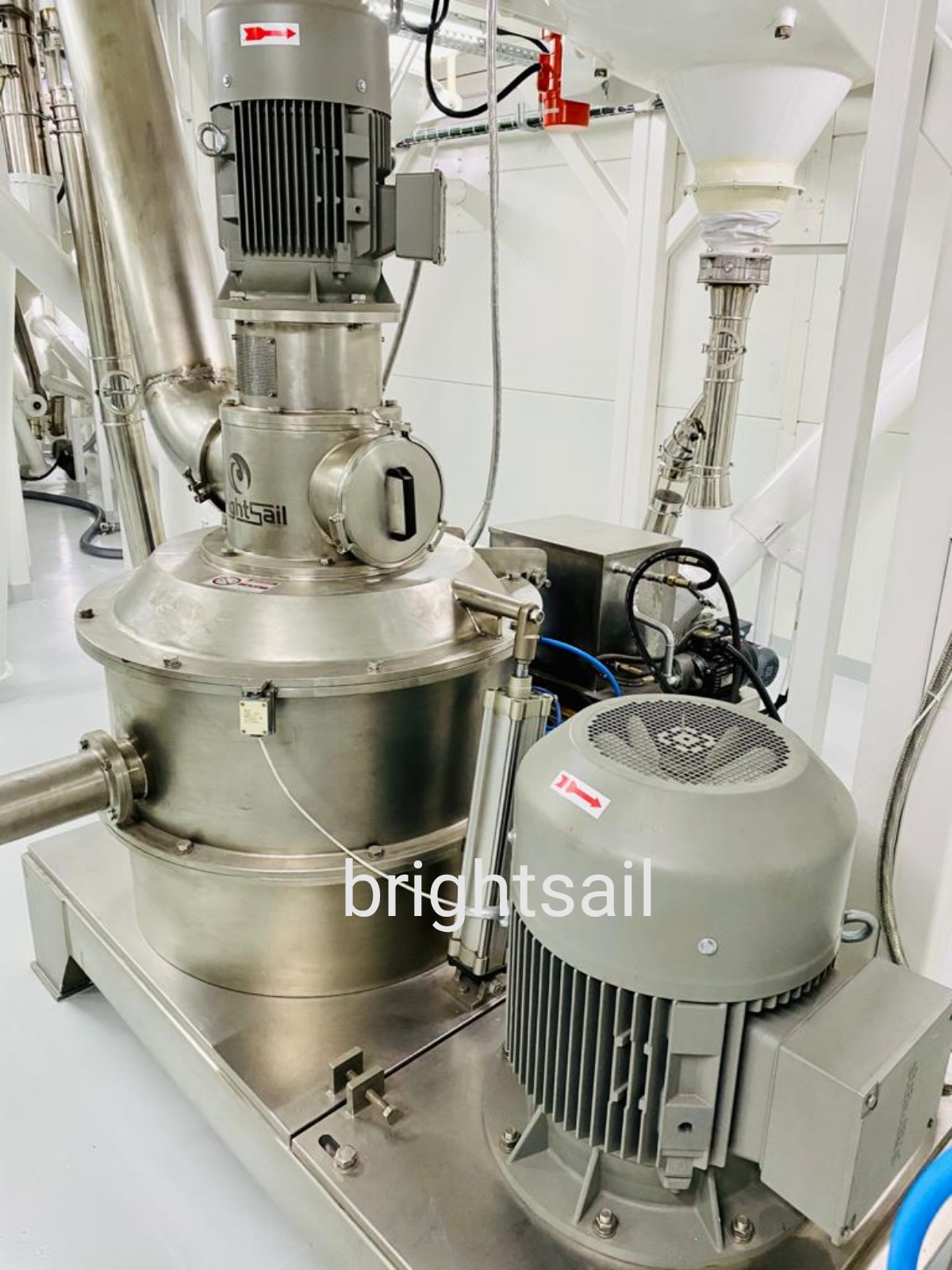

(This is BSP was assembled at a customer's factory in Poland)

Super Fine Rice Hull GMP Ss316 Powder Grinder Machine

Grinding effect:rice hull powder machinery

Super Fine Rice Hull GMP Ss316 Powder Grinder Machine

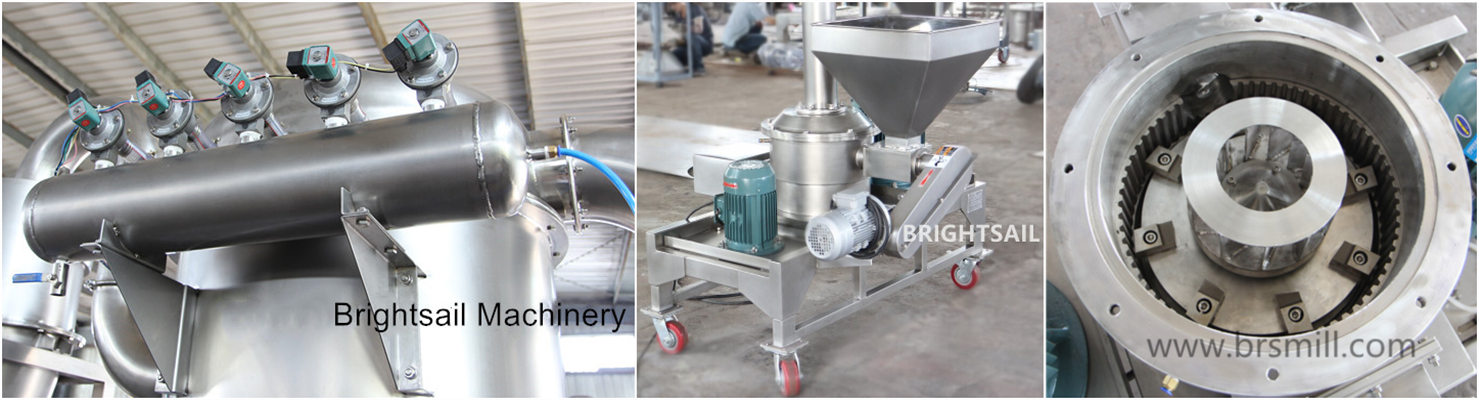

Detailed image:rice hull powder machinery

Super Fine Rice Hull GMP Ss316 Powder Grinder Machine

Contact us,we can give you the most appropriate advice
our email: info@brightsail-asia.com

website:www.brsmill.com
Whatsapp: +8615961653782
