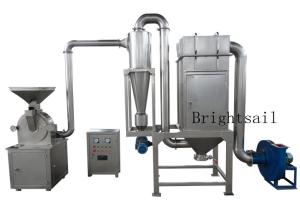

Herbal Medicine Grinder 10 TO 120mesh Powder Making Liquorice Pulverizing Machine
Product introduct:liquorice pulverizing machine
This machine is suitable for crushing crystal materials, such as 1-2 tons of sugar powder per hour. Suitable for grinding leaves, grain, chemical powder, etc. . Dust removal system is adopted to collect the powder dust in the cloth bag, which is more environmental friendly to the industry.
Technical data:liquorice pulverizing machine
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working method:liquorice pulverizing machine
The product enters the grinding room through the hopper. Under the impact of a high-speed rotating grinding disc/hammer, the product is thrown into the fixed ring gear and bounced off the cut. At the same time, under the impact, cutting and friction of the round plate, the material is finely grained. Under the negative pressure of the fan and impeller, the powder is absorbed into the cyclone separator and discharged through a screen and pipe. The pulse duster also collects some dust.
Features:liquorice pulverizing machine
1. The grinding chamber is equipped with a water cooling system to effectively avoid damage to your products caused by high temperature during the grinding process.
2. Unique impeller design, the air flow generated during the grinding process will bring the final powder product out of the grinding chamber together with hot air. No debris/clogging.
3. The screen is made of high-quality stainless steel. Special design. When you need another mesh powder, you can easily replace the mesh.
4. Excellent cyclone powder discharge system, powder discharge motor and automatic rotating powder discharge device to ensure uniform, stable powder discharge and no dust flying.
5. The machine is also equipped with a dust removal system, which is used to collect the fine powder inevitably produced during the grinding process into the dust collector, so that the final powder discharge of the automatic rotating powder discharge device is more uniform.
6. All stainless steel structure, in line with GMP standards, food grade, chemical grade, and pharmaceutical grade standards.

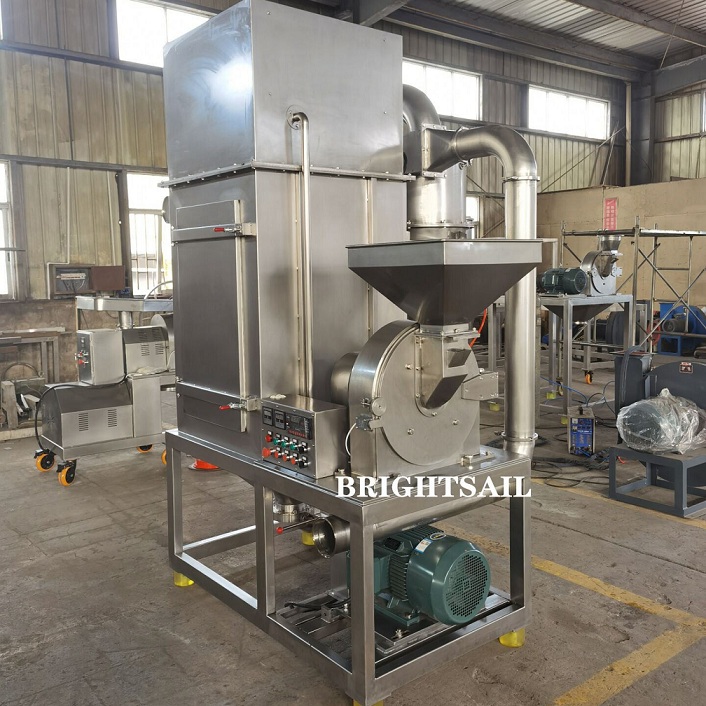

Crusher part:liquorice pulverizing machine
Crushing Effect:licorice powder making machine
