SUS304 2000kg/H Herb Powder Grinder Machine Micro Pulverizer

Name: SUS304 2000kgH Herb Powder Grinder Machine Micro Pulverizer
Brand: BrightSail
Price: 5 USD

China SUS304 2000kg/H Herb Powder Grinder Machine Micro Pulverizer wholesale

Brand Name : BrightSail

Certification : CE ISO

Place of Origin : Jiangsu, China

Price : $5,000.00/Sets >=1 Sets

Supply Ability : 50 Set/Sets per Month

Packaging Details : Brightsail Chinese herb medicine dry and wet grain dried herbs grinder machine micro pulverizer
wooden case or container

Output (kg/h) : 20 - 2000 kg/h

Feeding Size (mm) : 1 - 15 mm

Output Size (mesh) : 60 - 1000 mesh

Power (kW) : 11

Range of Spindle Speed(r.p.m) : 1 - 6500 r.p.m

Application : Medicine Processing, Chemicals Processing, Food Processing, food,chemical,medical

Condition : New

Type : Pulverizer

Product Type : Pulverizer

Voltage : Customized, customized

Dimension(L*W*H) : Customizable

Weight (KG) : 1600 KG

Warranty : 1 Year

Key Selling Points : Multifunctional

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops

Showroom Location : None

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor

After-sales Service Provided : Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support

Material : SUS304

MOQ : 1 Set

Fineness : 60-1000mesh

Model : BSP

Package : Wooden Case

After Warranty Service : Video technical support, Online support

Local Service Location : None

Port : Shanghai port

Contact Now

Brightsail Chinese herb medicine dry and wet grain dried herbs grinder machine micro pulverizer

A pulverizer or grinder is a mechanical device for the grinding of many different types of materials. When you pulverize something, you break it up until it becomes dust or powder. We offer grinders for both laboratory analysis and industrial production, which grind the powder into ultra fine.

This machine is consisted of main motor,auxiliary motor,and electrical control cabinet with the capabilities of winnowing,non-sieve or mesh,equality of granule size,and continuous processing etc. it meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics,chemical and foodstuff etc.

SUS304 2000kg/H Herb Powder Grinder Machine Micro Pulverizer

Model	BSP-350	BSP-450	BSP-500	BSP-750
Capacity(kg/h)	20-200	40-500	60-800	120-1800
Input granule size (mm)	<15	<15	<15	<15
Out powder size (mesh)	60-2500	60-2500	60-2500	60-2500
Crush motor power (KW)	7.5	15	22	45
classifier motor (KW)	1.1	2.2	7.5	11
Feed motor power (KW)	0.37	0.75	0.75	1.1
Blower (KW)	5.5	7.5	18.5	37
Rotary valve (KW)	0.75	0.75	0.75	1.1
Cutter rotating speed (rpm)	~6500	~5600	~4400	~3100
Classifier impeller rotating speed (rpm)	4000	4000	3500	3000
Overall size (LWH)(mm)	500014002800	540015002900	660020003600	980027004900
Weight(kg)	1600	1800	2300	3100

SUS304 2000kg/H Herb Powder Grinder Machine Micro Pulverizer

Main Features

1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4) No need screen, particle size can be changed by change speed; particle size varies from 80 to 500 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.

Detailed Images

SUS304 2000kg/H Herb Powder Grinder Machine Micro Pulverizer

Crusher part

(1) The left motor is crush motor;
(2) the right motor is classfifier motor.

(3) It adopts a small screw feeder, make sure feed speed is even and controllable.

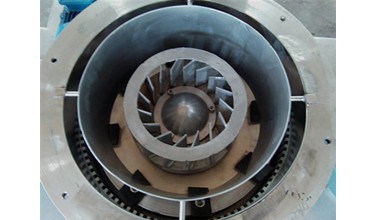

Cutter inside mill chamber
Work method:Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades.The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation,both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a greater mass,they are thrown back into the mill chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box.

SUS304 2000kg/H Herb Powder Grinder Machine Micro Pulverizer

Cyclone part

(1) Cyclone can seperate dust from powder(granules)

(2) Rotary valve make powder discharge speed even

Rotary valve is also made of stainless steel

and to clean it and dismantle is convinient.

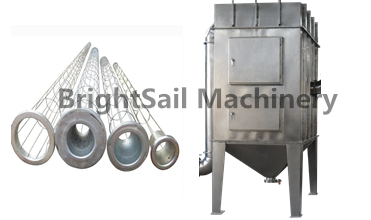

Pulse Dust Collecting box

(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently.

SUS304 2000kg/H Herb Powder Grinder Machine Micro Pulverizer

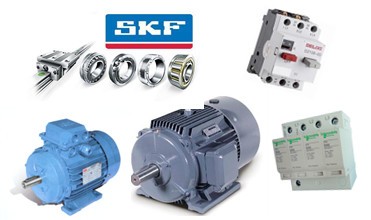

TO MAKE SURE BETTER QUALITY

1) We use motor from ABB/Siemens/WEG

2) We adopts electrical control parts from Schneider/Delixi

3) We use bearings from SKF

Our Service

SUS304 2000kg/H Herb Powder Grinder Machine Micro Pulverizer

Pre-Sales Service

* Inquiry and consulting support with 24 hours

* Sample testing support.

* View our Factory.

SUS304 2000kg/H Herb Powder Grinder Machine Micro Pulverizer

After-Sales Service

* Instructing how to install the machine, insutructing how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

SUS304 2000kg/H Herb Powder Grinder Machine Micro Pulverizer

Packaging Details:
Export standard package. Fumigation wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.
