Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail

Name: Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail
Brand: BrightSail
Price: 13 USD

China Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail wholesale

Brand Name : BrightSail

Model Number : BSK

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : $13,500.00/sets >=1 sets

Supply Ability : 20 Set/Sets per Month

Packaging Details : wooden case or container

Output (kg/h) : 100 - 4000 kg/h

Feeding Size (mm) : 0 - 15 mm

Output Size (mesh) : 60 - 2500 mesh

Power (kW) : 12.12

Range of Spindle Speed(r.p.m) : 580 - 2900 r.p.m

Material : SUS304, SUS316, Other, SUS304

Condition : New

Type : Pulverizer

Voltage : Customized

Dimension(L*W*H) : Customizable

Weight (KG) : 1500 KG

Warranty : 1 Year

Key Selling Points : Automatic

Applicable Industries : Building Material Shops, Food & Beverage Factory, Farms, Retail, Food Shop, Food & Beverage Shops, Other

Showroom Location : None

Marketing Type : Hot Product 2023

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor

MOQ : 1 Set

Other name : Hammer mill

Advantage : High Effieciency

Fineness : 60-2500 Mesh

Name : Chinese Herbal Medicine Powder Making Machine

Package : Wooden Case

Feature : High Efficiency Easy Operation

Port : SHANGHAI

Contact Now

Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail

Product Description

Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail

Main application of our BSK jet mill

- Abrasive products

- Sticky products

- Mineral fillers

- Ceramic fillers

- Food

- Chemical products

- Agricultural chemicals

Flow Chart of our air jet mill machine micronizer

Working method of our air jet mill machine

Air Jet Mill is a pulverizing machine which uses high-speed compressed air to grind dry-type materials into ultra fine powders.

The main part consists of screw feeder, milling nozzle, milling chamber, classifier chamber, and etc.

In adjustable speed, screw feeder doses the raw materials stably and continuously into the jet mill. Compressed air reaches a very high speed when rushing through the special designed nozzles.

Carried by the compressed air, materials crash in the midst of air flow, where they grind with each other by impacting repeatedly.

The ground materials fly upwards with the rising air, entering the classifier chamber, where ground materials facing two forces the centrifugal force result from the fast rotation of classifier wheel and the pneumatic attraction by the suction fan.

If the ground materials are finer than grading range, pneumatic attraction is stronger, so materials pass through the classifier wheel and move on to the cyclone and dust collector to be collected. In contrast, coarser materials are rejected back to the milling chamber to be re-milled.

Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail

Technical Parameters of BSK jet milling machine:

Model	BSK-100	BSK-200	BSK-300	BSK-400	BSK-600	BSK-800
capacity(kg/h)	0.5-10	10-100	80-200	100-500	200-700	400-1500
Air consumption(m³/min)	3	4.5	6	10	20	40
Working pressure(Mpa)	0.75-0.85	0.75-0.85	0.75-0.85	0.75-0.85	0.75-0.85	0.75-0.85
Feed diameter	≥60	≥60	≥60	≥60	≥60	≥60
Grinding fineness(um)	0.5-30	0.5-30	0.5-30	0.5-30	0.5-30	0.5-30
Energy Consumption Power(kw)	20	40	95	95	188	380

We also have lab micronizer air jet mill

Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail

Pictures of our powder jet milling machines in user's factory

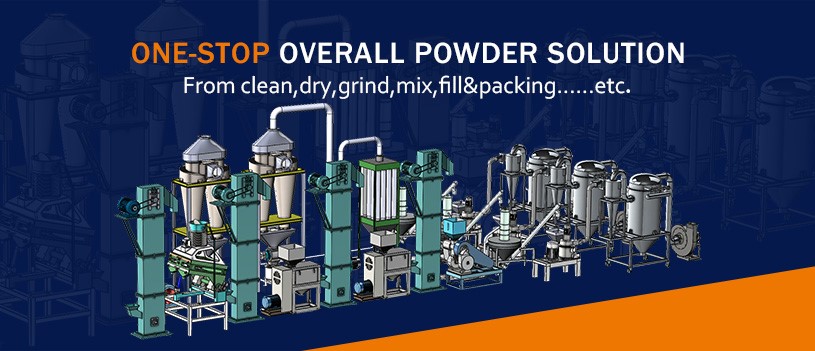

Not only jet mill !

We provide overall one-stop powder product processing machines and solutions.
We provide washing machine,cutting machine,dryer, roasting machine, crusher, grinder, pulverizer, mixer, filling and packing
machines......etc

Company information

Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail

We Brightsail Machinery are engaged in manufacturing a wide range of grinders and mixers.

Our machine can be used in food plant plant and chemical plant for powder making or powder mixing. And we are devoted to offering customization service to our clients to meet various requirements. Within years, we have exported machines to North American, European and Asian countries.

Till 2023 year, we have exported machines to more than 85 countries.

Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail

Packaging&Shipping

Our Service

Client's visit

Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail

FAQ

Dye Air Jet Mill Crusher Machine Price Lab Vertical Horizontal Milling from Brightsail Images
