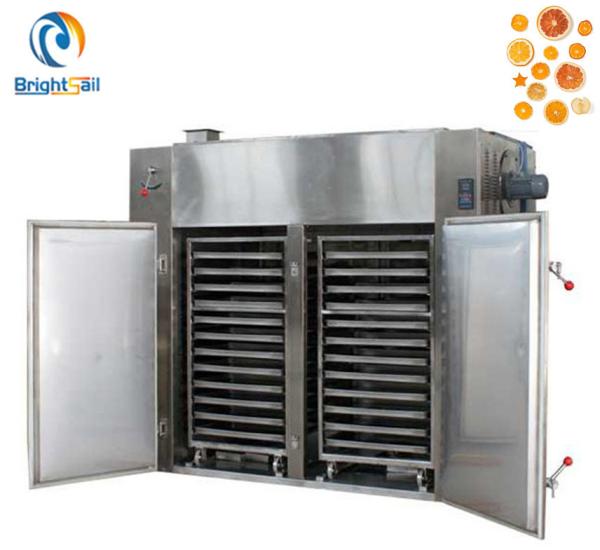

Stainless Steel 304 Fruit Dryer Drying Machine High-Quality
BSO fruit drying machine is a multifunctional drying device, which mainly circulates inside the box through the forced hot air heated by the electric heating tube or the steam heat exchanger to enhance the heat transfer and achieve the effect of drying the material. It can be used in many application, like seafood, grains, herbs, spices, fruits and other materials, which widely applied in food, chemical, pharmaceutical and other industry.
Working Method:
The basic principle of the BSO series hot air circulation drying oven is to use steam or electricity as heat energy, and heat is generated by a steam radiator or electric heating element. The fan performs convective heat transfer, heat is transferred to the material, and fresh air is continuously added to the oven to discharge humidity Gas is blown from the oven. When drying, maintain proper relative temperature and humidity. The most important feature is that most of the hot air circulates in the drying room, thereby enhancing heat and mass transfer and saving energy.
Main Features:
1. The entire machine and baking tray made of stainless steel.
2. Most of hot air inside the loop, high thermal efficiency, energy conservation.
3. The use of forced ventilation in the box high and adjustable air board, dry materials evenly.
4. Source may be steam or electricity.
Technical Data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
Our Company:

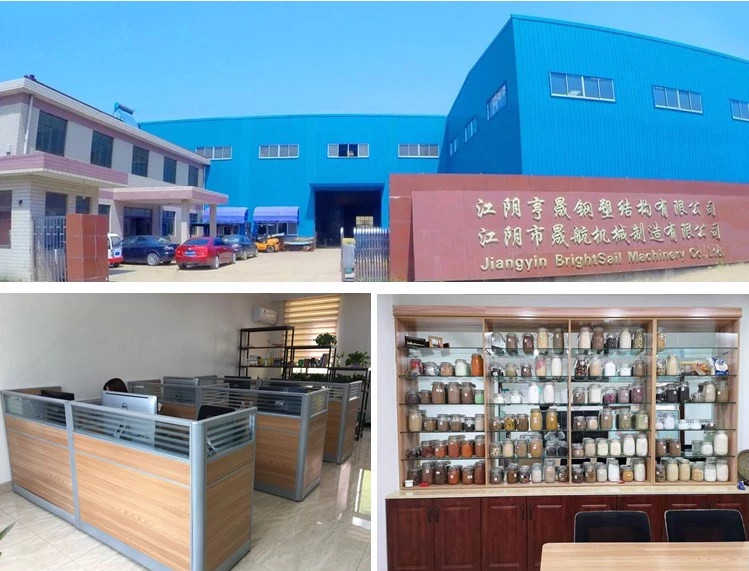

Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Heng Sheng Steel Structure Co.Ltd which is established in 2002.
We provide professional powder processing overall solution,grinder,mixer,sifter,welding service,welding machine,chemical powder...etc.
We have sent our products to more than 40 countries around the world for now.Brightsail is constantly committed to develop new advanced techniques and methods on the machines,since our goal is to be your trusted provider of creative and value added process solutions.
