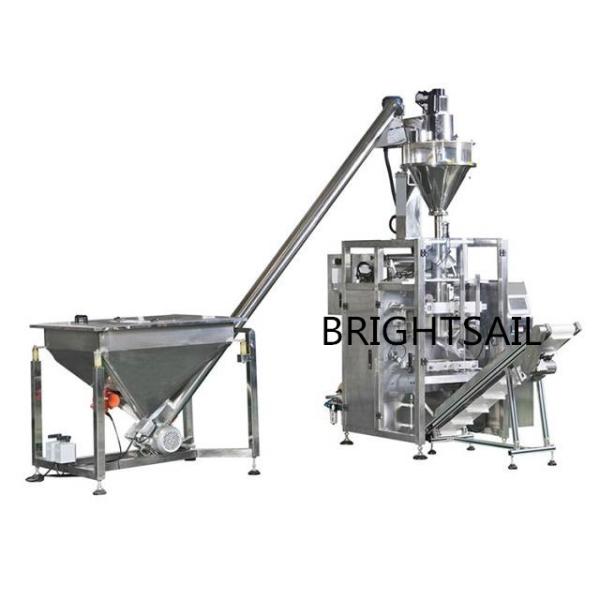

Packing Weight 10g 5kg ginger powder packaging machine
BSPM powder filling machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
Main features:
1.Machine equipped with measure parts and it can automatically complete the packaging process of measuring, feeding, bag filling, date printing, air aeration (exhaust), bag conveying, and automatic bag counting;
2.PLC control system, pneumatic control system and oversize touch screen to form driving control core. Maximum control precision, reliability and intelligence of the whole machine;
3.The touch screen can store the packaging process parameters for many different products. When changing the product, it can be used without resetting.
4.Adopts intelligent temperature controller and temperature control is highly accurate. Ensure that the sealing is beautiful and smooth; >It can make pillow-shape bag according to customers' requirement.
5.Horizontal sealing part hold film for film feeding,positioning high accuracy,little friction,and less loss;
6.It can select full stainless steel or carbon steel with plastic-sprayed machine structure;
7.It has a error display system, which can help for troubleshoot quickly.
8.It is equipped with safety protection to meet enterprise safety management requirements.
Technical data:
| Measure method | Auger dosing | Wrighing feedback tracking |
| Bag-making size | (W)80-200 mm (L)100-300 mm | (W)100-250 mm (L) 100-350 mm |
| Filling weight | 10-5000 g(by changing mould) |
| Packaging precision | ≤1% |
| Packaging speed | 25-60 bag/min |
| Power supply | Three phase 380/220 V 50-60HZ |
| Power | 6 kw |
| Pressure | 6-8 kg/cm2 |
| Use tolerance | 0.2 m3/min |
| Weight | 700 kg | 950 kg |
| Dimension | 1300*1500*2600 |
Process flow diagram:
 | Auger Filler
driven by servo motor,with adventage of high accuracy
Touch Screen Easily to monitor and control the packing machine on touch screen. Main function: 1. start or stop the machine 2. set up the bag length 3. set up target weight 4. pull film correction 5. check production capacity and son on....... Cursor detection: Detect the color code of roll film and control the bag length. Ribbon printer: 1. Number of printing lines: 1-3 lines 2. Number of columns to be printed: up to 14 characters in a row 3. Particle size: 2 * 4mm 4. Preheating time: 5-10 minutes |
Application:
