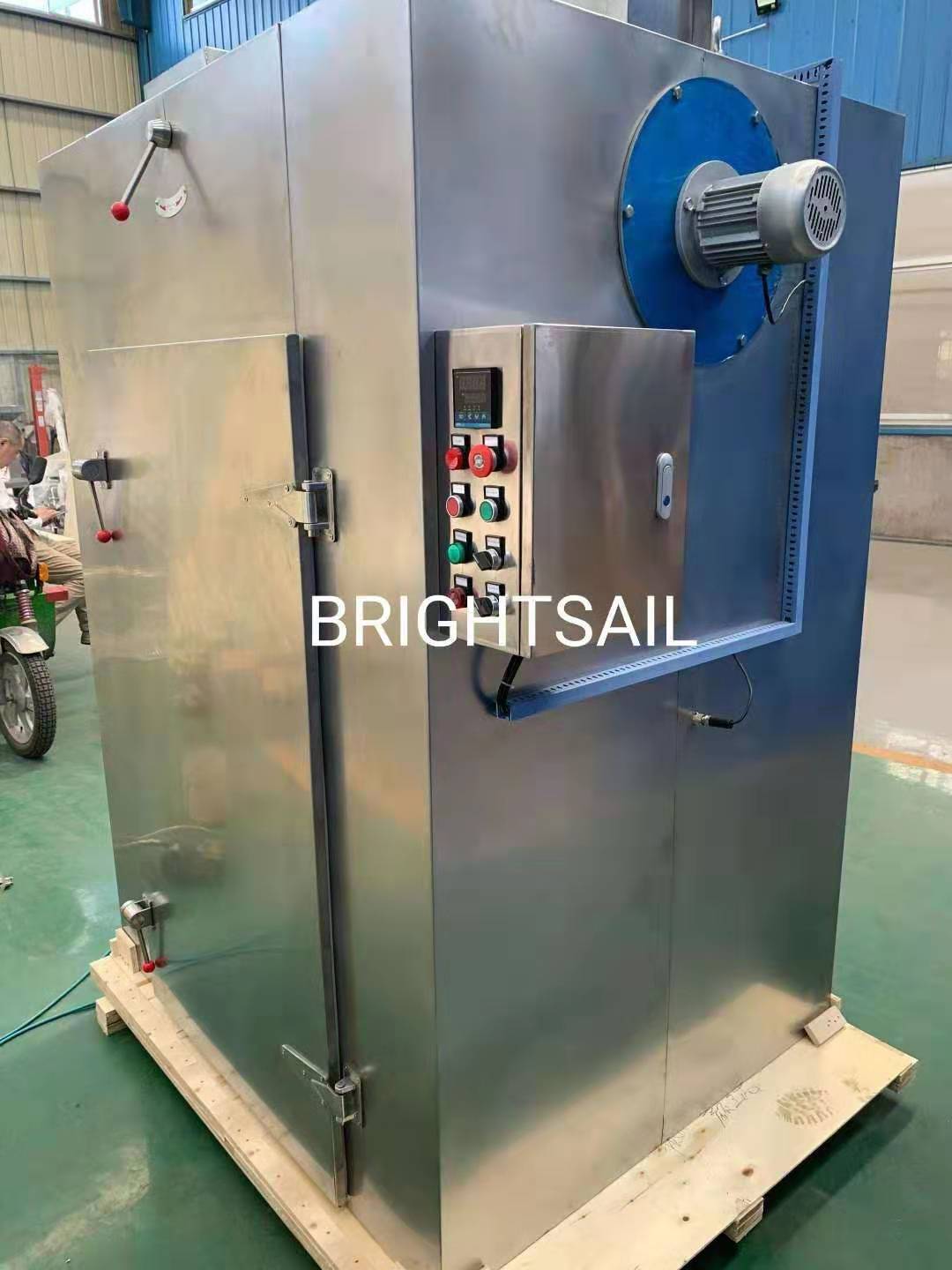

Fruits And Vegetables Air Dryer Food Dehydrator Machine
Brief description:
This drying oven is suitable for the material and for solidification and drying de-watering in the pharmaceutical, chemical, food, farming, aquatic product, light and heavy industry as well as other industries.
Most part of hot wind is circulated in the oven with high thermal efficiency,less energy consumption.The oven is equipped by the adjustable air-distributing plates to utilize the forced ventilating to dry the target materials evenly.The whole machine runs in stable condition,low noise,self-control temperature,easy installing and maintaining,and wide application.
Application:
Chili, turmeric, cinnamon, ginger, leaf, herb, cassava, drug, roots, etc
Main features:
1.Hot air circulation system, high efficiency, can drying food uniformly.
2.Temperature control and timer function, set up temperature and time in accordance.
3.Adjustable temperature from room temperature~150 degrees.
4. Easy operation and cleaning,high energy efficiency
5. Movable type tray car
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
Our service:
Inquiry and consulting support WITHIN 24 HOURS, sample testing and factory visit for pre-sales service.
Installation guide and one year warranty for after-sales service.
Export record:
In the past few years, we have sold machines to over 70 countries.
FAQ:
1) What material you want to dry?
2) What is the water content of your raw material?
3) What the final water content you want to get by dryer?
4) About heat source, you will use electricity or steam?
5) How many kgs do you need for per batch?
6) How many work hours you plan to use per day? (like 8 hours, 10 hours,12 hours...etc)
